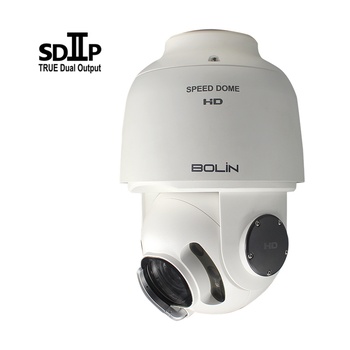

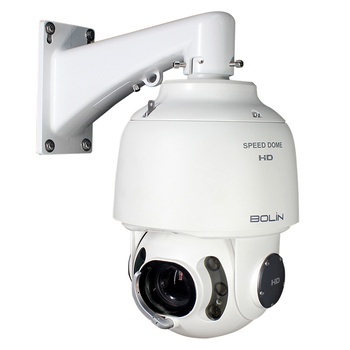

BOLIN SD530 Outdoor DOME-Camera

SKU: SD530

BOLIN’s SD530SHD-B-RSN2PW True Dual Output SDI FHD PTZ cameras support simultaneous 1080i59.94 3G-SDI and 1080p IP video streaming and IP remote accessibility for recording and monitoring. It provides 30X optical zoom with FHD resolutions, low latency mode, and image stabilizer for high quality image broadcast reproduction usage.

It is a robust high speed PTZ camera build with rugged IP67 environmental housing for extreme weather use application. Zero Deviation Positioning (ZDP) technology ensures this camera has high precision and accuracy in preset programming and smooth and high/slow speed movement.

BOLIN Dual Output PTZ cameras are ideal for indoor and outdoor environment use in Broadcast, Pro AV and security applications to have real time uncompressed video and capability of IP video streaming and remote controlling via IP.

* SDI+IP True Dual Output Video
The SD530SHD PTZ Dome camera provides broadcast high quality color image for broadcast and live production, video streaming and industrial monitoring and situational awareness application.

* Brilliant Broadcast Quality of Imaging
1/2.8-type Exmor R™ sensor captures up to FHD (1920 x 1080 60fps) high resolution images with excellent sensitivity, very low noise, and rich natural color reproduction.

* Full Resolution Image
SDI video resolution supports up to 1080p60, 1080i59.94; IP video resolution supports up to 1080P60.

* Professional Image Parameter Setting
Wide range of image parameter settings for versatile outdoor scenes: Color enhancement, 2D/3D noise reduction, 120dB true WDR, De-fog, HLC(High Light Compensation), Day/Night mode, character/logo image overlay in OSD, etc.

* Low Latency Mode
On top of baseband 3G-SDI video for live event production, Low Latency Mode sets 3G-SDI real time video feeds with extremely low delay.

* Powerful 30x Optical Zoom
The 30x optical zoom with 12x digital zoom for frame-filling clear close-ups. Responsive autofocus ensures that images stay clear and sharp, even at high zoom settings.

* IR LED Illumination
IR LED Illuminator lightens up 250ft at night. Angle of illumination view is adaptive with zoom range.

* ZDP - Zero Deviation Positioning
ZDP - Zero Deviation Positioning technology ensures high precision and accuracy when using PTZ preset programming by minimizing deviation of presets and patrol positions over time

* Quiet and Precise Movement
Variable speed and smooth, quiet, precise movement. Zoom adaptive variable slow speed controls

* Picture Profile Preset
Image parameter setting restored with the presets for quick access operation.

* Always up to date
Firmware upgrade via IP interface provides capability of constantly improving the camera features and performances, even for customized function upgrades.

* Power 24VAC, 24VDC, PoE (IEEE802.3bt)

SDI Output Only version is available*
SDI Output Only version does not have IP functionality. Special order only.
S Class simple version is available**
Compare to standard version B class camera, S class does not have i (Interlace) format video output, doesn't have Visca control protocol. All other specification is same as B class camera. Special order only.

Manufacturer: BOLIN Technology
