RedNet D16R is a 1U, 16x16 AES3 interface for any Dante™ audio-over-IP network. Featuring network and power supply redundancy, RedNet D16R is the ideal choice for providing AES3 I/O in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio. Perfect for bridging between digital consoles, power amplifiers or any other AES3-equipped audio equipment and any Dante network, RedNet D16R has SRC (Sample Rate Conversion) on each input pair allowing plug-and-play operation with any AES3 source.

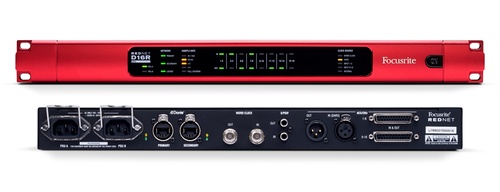

Two rear-panel DB25 connectors wired to the AES59 standard provide eight pairs of AES3 I/O, while an additional pair of XLR connectors allows flexibility in cabling choice for one pair of I/O. Additional RCA connectors allow the connection of consumer S/PDIF equipment. All external audio inputs include sample rate conversion, further reducing cabling and clocking complexity. Word Clock I/O on BNC connectors allows external devices to clock to RedNet D16R, or alternatively allows RedNet D16R to act as a network clock grand master slaved to external input. Power is supplied through a pair of locking IEC power inlets, and network connections are provided with a pair of locking Neutrik etherCON connectors; providing redundant operation or daisy-chained operation.

* 16x16 AES3 I/O for Dante audio-over-IP networks
* Up to 24-bit, 192kHz sampling rates with sample rate conversion
* AES67 compliant
* Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability
* Flexible input options: DB25, XLR, RCAWord Clock I/O and DARS input for increased flexibility
* Combined digital I/O to AES59 standard on DB25 connectors
* Comprehensive front-panel metering and indicators
* Remote monitoring software with powerful graphic user interface
* Brainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.
