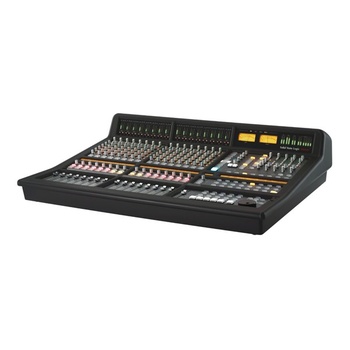

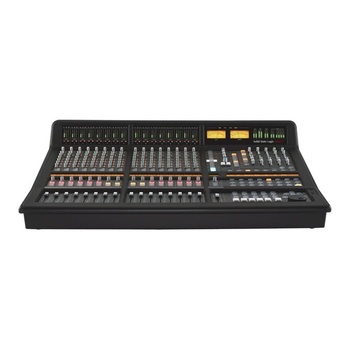

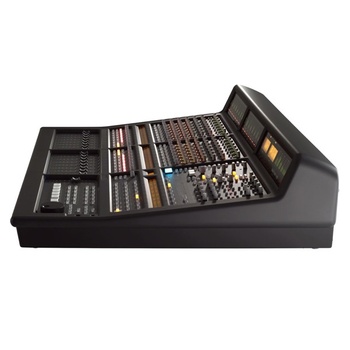

40 input SuperAnalogue™ summing console:

16 analogue line channels with two inputs per channel
32 x 16 x 16 'Insert Router' for up to 16 external hardware processing devices
Hardware processors can be inserted via console controls or cross platform drag and drop software browser
Hardware processors can be inserted individually or as 'chains'
Stereo Aux Send and 4 x Mono Sends per channel
4 Stereo Returns with full stereo mix bus routing
Dual Stereo Mix Busses with summing Inserts and reassign
Artist Monitor output with independent EQ and monitor source selection
'In Line' DAW monitoring with 'SuperCue' headphone mode
Stereo or 5.1 External Monitor inputs
Stereo or 5.1 EXT monitoring outputs with independent Main and Mini monitor control
Stereo digital I/O (S/PDIF, AES/EBU) with SSL converter technology
iJack front panel Monitor input
Heavy duty external PSU
Ergonomically advanced hybrid hardware control surface:
Single button push flips control between the analogue signal path and DAW software
Multi-layer control of up to four DAW's simultaneously
Digital scribble strips for constant visual feedback
16 channel strips each with motorised fader and assignable rotary encoder
Additional motorised 'Focus' fader for simultaneous DAW/Console control
Fader-linking for analogue channels
Programmable hardware buttons for sending of standard USB keyboard commands
Total Recall for analogue console controls
General purpose MIDI controller mode
A-FADA or MIDI Fader automation
Ethernet MIDI connectivity
Cross platform 'Logictivity' remote browser interface:

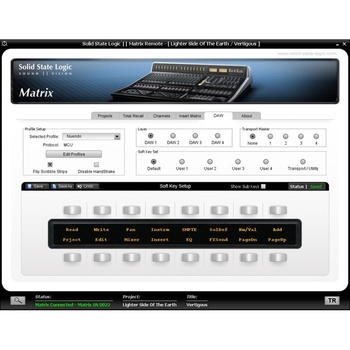

Intuitive cross platform remote browser for system configuration and project management

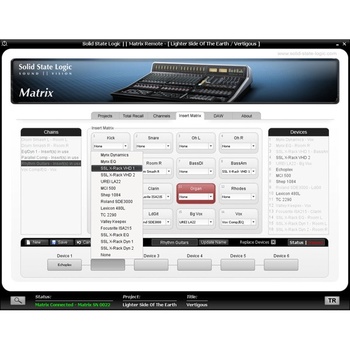

Simple drag and drop insert router page for configuring hardware device chains and loading inserts
