Bolin DANTE AV-12G Transceiver

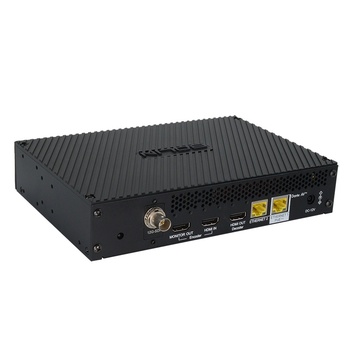

Bolin’s D20 Series Dante AV transceiver device can be programmed as an encoder or a decoder. D20 Series is a single channel networked AV over IP transceiver that is fully compatible with Dante audio devices within a Dante ecosystem for HDMI sources up to 4K60Hz 4096 x 2160, with embedded audio and PTZ camera movement control via IP or IR pass-through. It provides audio and video streaming over a standard gigabit network and D20S/D20H models as decoders output baseband video, either HDMI or 12G SDI, to work in professional AV applications.

It features advanced high-quality YUV4:4:4, ProAV optimized JPEG2000 lossless video compression technology and HDCP 2.2 compliant achieves ultra-low latency with 100% audio video synchronization when paired using Dante AV encoder and decoder.

D20 Series Transceivers are encoder/decoder devices configurable via firmware update. It is part of the Bolin DanteAV camera/codec system, it delivers a high-performance virtual video matrix routing solution for presentation of multimedia, and live camera images, Dante 4k video content application such as demanding conference room and classroom applications.

Encoder/Decoder Configurable
■ D20 Series, D20H and D20S Dante AV transceiver can be configured as an individual encoder or decoder via a firmware update.
■ For a complete encode/decode solution, two separate devices are required,
■ Unique firmware to program as an encoder or decoder will be available on

Lossless image with extremely low codec latency
■ Bolin’s D20 Series transceiver streams and transports up to 4K60 4:4:4 video output with ultra-low latency and lossless video quality.
■ D20 Series transceiver incorporates an optimized implementation of the popular JPEG2000 codec in FPGA, which delivers visually perfect lossless image at 4K60 with < 10ms codec latency.

HDMI output EDID and HDCP content protection supported

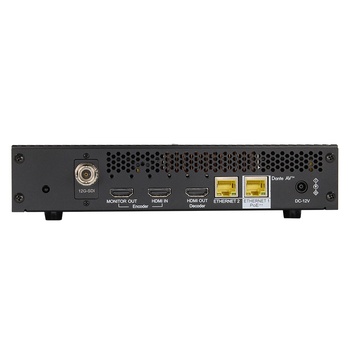

■ The D20 Series decoder provides decoded images via HDMI 2.0 port, with EDID support. Integrated high-performance scaling engine provides a scalable encoded source for a wide array of UHD and HD resolutions to match the different capabilities and requirements of sources, displays, codecs, and other equipment.
■ D20 Series encoder and decoder support HDCP 2.2 (HDCP 2.3 over the network) to provide digital content protection.

Remote Control & Monitoring
■ D20 Series has a built-in serial (RS-422), which enables serial port PTZ camera joystick controller via Dante Serial Over IP control running Visca protocol. D20 Series also supports IR over IP feature to control connected displays, PTZ cameras, and other devices.
■ When paired with Bolin DanteAV PTZ camera D412/D220, D20 Series as a decoder supports camera control and configuration using Visca Over IP protocol from the PTZ controller.

Manufacturer: BOLIN Technology
