Dante DARK8O Portable 8 Channel Dante/AES67 Analogue Network Audio Interface

SKU: Glensound DARK8O

Ideal for Broadcast, Theatre and Pro Audio
8 Analogue Audio Outputs
Dante & AES67 Compatible
Redundant Network interface
Network Remote Control & Configuration
Redundant PoE

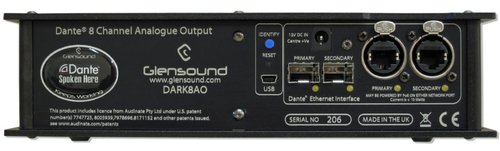

The DARK8O provides 8 analogue outputs from a Dante/AES67 network using XLR connections. The network link is via primary and redundant copper Ethernet or SFP fibre modules. Power is on PoE or external DC.

The compact throw down box style makes the DARK8O very useful as a high quality utility output interface for your Dante or AES67 network.

Maximum Output Level: +18dBu
Fs line up: 0dBFS = + 18dBu
Frequency Response: >-0.25dB 20Hz to 22kHz
Output Impedance: <=50 Ohms
Distortion: (REF +8dBu output)
0.008% @ 100Hz
0.007% @ 1kHz
0.005% @ 10kHz
Noise: -93dB@line up A weighted RMS
Dynamic Range: 111dB
Interchannel Crosstalk: >109dB
Output Type: Electronically balanced (can be wired unbalanced)
Network Sample Rates: 32 - 192kHz

Physical: 2 x Neutrik Ethercon RJ45 sockets and 2 x GBIC SFP module slots
Protocol: Dante & AES67
Audio Sample Rates: 32 - 192 kS/s

PoE Inputs: 2 of standard 48V.
One on each network RJ45
PoE Consumption: Total unit consumption <15Watts
Ext DC Input: 2.5mm Barrel Connector, Centre +Ve, 9 to 15V

Size: 59x 157 x 238mm (H x D x W)
Weight: 1.20Kg
Mechanics: All aluminium construction, anodized panels and laser etched front & rear panels
Shipping Carton: Rugged export quality cardboard carton 610 x 420 x 130mm (L x D x H)
Shipping Weight: 2.5Kg

Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing
Network Cable: 1 of 2 metre RJ45 Cable
Handbook: A5 paper handbook (download also available)

Manufacturer: GLENSOUND
