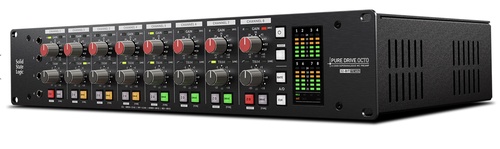

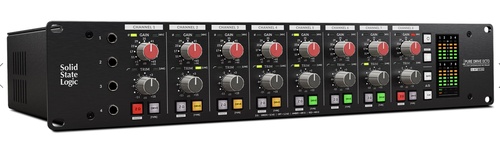

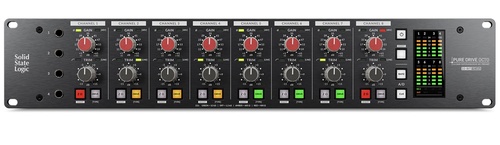

SSL Pure Drive Octo

SKU: Pure Drive Octo

Mic Pre’s with Prestige
The PURE DRIVE QUAD harnesses Solid State Logic's renowned SuperAnalogue PureDrive™ microphone preamp technology, originally featured in the ORIGIN console. This advanced unit introduces a new DRIVE mode, comprehensive connectivity, and state-of-the-art digital conversion, all within a compact 4-channel 2U rackmount format. The ORIGIN recording console, a contemporary-classic from SSL, first introduced the groundbreaking PureDrive™ microphone preamplifier. This innovative preamp maintains the clarity and punch of SSL's previous designs while also offering the flexibility to switch its character to a warm, harmonically rich, and driven tone that varies with gain.


Clean Mode
Clean mode (White) delivers the highly regarded, ultra-low noise floor, linear SSL preamp that is recognised for its ability to faithfully capture the sound of the source with exceptional clarity and detail.

Classic Drive
Classic Drive (Amber) is the symmetrical mode that generates predominantly odd harmonics; the same drive sound found on the ORIGIN console.

Asymmetric Drive
Asymmetric Drive (Green) offers up a new colouration option, specifically designed for the PURE DRIVE range, making the even harmonic content dominant and providing more pronounced thickness, colouration and softening of transients.

Advanced connectivity
PURE DRIVE QUAD’s advanced connectivity opens a world of recording possibilities. Its comprehensive selection of analogue and digital I/O offers microphone preamps with exceptional performance and flexibility, whether you're tracking a band in a world-class studio or adding warmth to stems in a production scenario. It's also ideal for project studios and on-location sessions where quality cannot be compromised, thanks to its integrated USB sound card.

PURE DRIVE QUAD features four rear-mounted combo XLR inputs, four front-panel Hi-Z/DI instrument inputs with automatic input detection, and three sets of D-sub connectors for line-level inputs, as well as insert send and insert return. PURE DRIVE QUAD’s insert returns/ADC inputs operate up to full +24 dBu line-level, for interfacing with other professional equipment.

PURE DRIVE QUAD’s versatile digital connectivity features an integrated USB soundcard providing four channels of audio into your DAW up to 32-Bit/192 kHz. Two AES/EBU output pairs, and ADAT out, offering four channels at 24-bit/48 kHz, or cascade two PURE DRIVE QUADs via its convenient ADAT LINK IN connection and access up to eight channels. The AES and ADAT outputs can even be individually repurposed to be fed from the onboard USB soundcard as outputs from your DAW. Finally, there's an auto-ranging word clock input and output for robust digital clocking.

Key Features

* 4 channel high-performance PureDrive™ mic preamps 
* +48V phantom power, polarity invert and 3rd order hi-pass filter
* Stepped Gain control up to +65 dB Gain 
* 31-step Trim control, with precise 1 dB increments – overdrive the signal with the Gain control and then reduce to a suitable level using Trim. 
* 3 modes for each preamp – Clean, Classic Drive and Asymmetric Drive 
* Mic/Line Input Switching 
* Mic via XLR 
* Line via choice of TRS Jack or dedicated D-Sub connectivity 
* 4 x front panel Hi-Z/DI Instrument unbalanced inputs with automatic input detection 
* 4 mic preamp input impedance options – explore new tonal possibilities from your dynamic and ribbon microphones
Balanced analogue outputs/insert sends for external processing 
* +24 dBu professional line level insert returns/ADC inputs 
Analogue to digital connectivity via ADAT, AES and USB
* Ability to switch ADAT and AES connections to source audio from DAW outputs (USB) instead of the A/D converter 
* USB soundcard mode : QUAD – 12 in / 12 out (@44.1/48 kHz) ; 4 x analogue + 8 x ADAT in (via Link in) / 4 AES + 8 ADAT outs
* Stepped pots and digitally controlled analogue electronics for precision, stereo matching and ease of recall 
* Up to 192 kHz and 32-bit conversion, professional I/O levels (+24 dBu = 0 dBFS). 
* Selectable Auto-Sleep mode 
* Auto-ranging Wordclock In and Out 


Manufacturer: SSL Solid State Logic Facebook

2,088.00

All prices incl. 20% VAT
