WES Audio _calypso

SKU: _calypso

_CALYPSO is an audio interface designed to work in 500 series enclosure. It features state of art 8 channels of AD/DA conversion and perfectly integrates with ng500 chassis – _TITAN, through I.A.C. connector. Besides its very convenient integration with ng500 chassis, it still can be used in standard 500 series enclosure using two DB25 connectors.

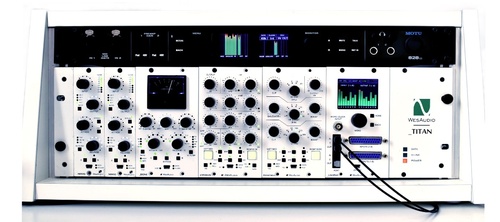

Integration with I.A.C. (Internal Audio Connector) inside _TITAN chassis features almost wire-free setup

Standard 500 chassis support!

_CALYPSO is designed to work with standard 500 series enclosures, in that case DB-25 connectors on the front panel can be used to route audio signal to and from chassis. DB-25 connectors can be also used to route audio signal from and to outboard gear!

Convinient Plug-in for I.A.C. recall and more!_calypso_plugin

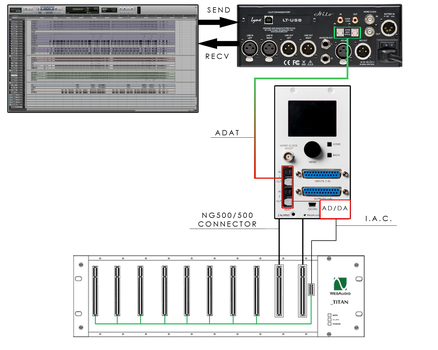

_CALYPSO as all ng500 units is integrated with VST2/VST3/AAX/AU plug-ins. While using with a _TITAN it allows to manage I.A.C. connector in other words it manages input source to each module to be either back XLR “IN” socket, or I.A.C. direct connection to _CALYPSO. This gives You totally recallable solution to route your signal differently based on DAW session. For more information please refer to examples section below! Plug-in supports:

Convinient metering,
Full unit control,
I.A.C. recall and management!
Sample rate selection based on DAW session
For more information please refer to manual!

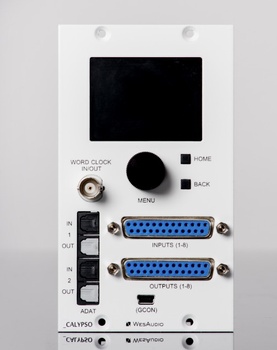

LCD screen with metering!
Calypso LCD screen will allow You to see all configuration options and manage the unit.

Features summary:

24bit conversion
Supported sample rates: 44.1kHz, 48kHz, 88.2kHz(SMUX), 96kHz(SMUX)
Ultra low jitter clock
Word clock IN/OUT
Full integration with _TITAN via IAC connector (Just ADAT cables are need to route all signal to and from chassis)
Two DB25 connectors allows integration with any 500 series chassis
Two converter reference levels +8dBu/-10dBV
LCD screen with channel metering

Product Information: http://wesaudio.com/_calypso/

Manufacturer: WES Audio
