BOLIN PTZ Camera Controller

SKU: KBD-1020N

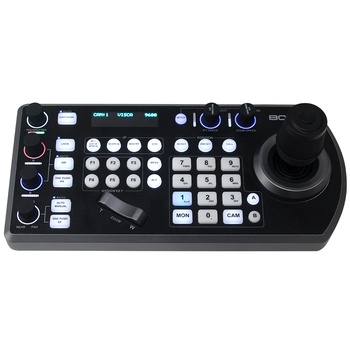

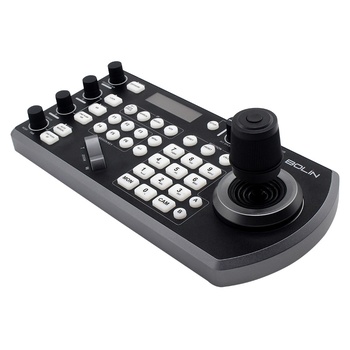

Ergonomically designed KBD-1010 controller has a direct-access panel interface with full preset store and recall for easy-to-find camera functions, dedicated knobs for PTZ variable speed control and for fine control with auto/manual toggle, illuminated push buttons for camera selection and a three-axis joystick for smooth precise camera movements.

Combining traditional serial control and IP network control, KBD-1010 PTZ camera controller comes equipped with many precision controls for the most demanding camera operation environments. It is an ideal partner for multi-PTZ-camera producer, creating a baseband video and a complete IP streaming solution for a wide range of content production applications, remote studio, education, state-of-the-art broadcast system, video conferencing, house of worship, etc.

Quick Access Control
Delicate knobs for Quick Access features include the control of Exposure, Shutter Speed, Iris, Compensation, White Balance, Focus, PT Speed, Zoom Speed.

All About PTZ Control
■ Pan, Tilt, Zoom 3-Way simultaneous joystick control
■ Supplementary seesaw lever zoom control
■ Instant variable speed adjustment for Pan/Tilt/Zoom
■ Trace Memory allows a sequence of camera moves to be stored and recalled whenever required.
■ Instant camera focusing by manually fine tuning and One Push focus.
■ Selectable Assign Keys for one-key quick action.

Image Parameter Control
Via Visca protocol, either serial Visca or Visca Over IP, the KBD-1010 has image color and exposure related settings - including black levels, white balance, auto/manual exposure level, iris, gain and shutter speed - can be adjusted directly without using the camera menus.
Quick, Simple, Direct IP PTZ Camera Assignment and Use
IP control, without using PC, automatically search available IP cameras in the network. Assign IP addresses and IP camera registration easily.

Store and Recall Camera Presets
Camera presets with position, zoom and image parameter settings can be stored and recalled instantly via the numeric keypad.

A Video Router/Matrix Controller Too
Camera and Monitor Switching via Video Router. KBD-1010 is compatible with Black Magic SDI video router, to switch cameras and monitors via the router with PTZ camera control switching simultaneously. More supported compatible video routers will be added.

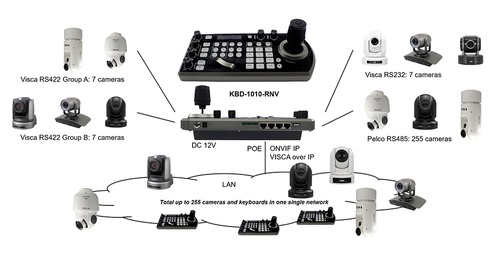

All Brands Camera Visca Over IP Control in One System
Visca Over IP port used with the camera is different from different camera makers, KBD-1010 allows you to use any brand of Visca Over IP cameras in a same system together with no conflicts.

Selectable ASSIGN Items
ASSIGN item is selectable, additional functions can be assigned to ASSIGN keys to have One-Key quick action of the camera’s Flicker, Status Display, AE level, SRZ, Tele Convert mode, Trace Memory, ND filter, Picture Profile settings, Rain wiper On/Off, Camera Power etc. Functionalities can be assigned. Available function depends on camera specification.
Keyboard and Camera Configuration Data Transferable via Software

Use IP software tool to modify and organize controller’s configuration, export/import existing PTZ camera registration data via IP network makes KBD-1010 controller configuration a breeze when you have multiple controllers to work in one system.
Use the Controller for Surveillance and Industrial Monitoring
With Pelco P/D and Onvif IP protocol supported, you can use the controller to control security PTZ camera as well if you have additional access to your surveillance system.

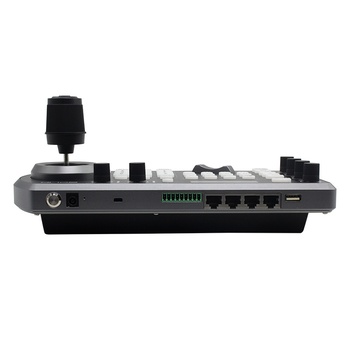

Power Over Serial Control Cable
Other than 12VDC power input, PoE(IEEE802.3at) supported for network control application. Even when use serial control, power can be provided over serial control cable to keep the keyboard back panel wire connection clean for moving the controller around.

Wide Range Power Voltage Tolerance 6V – 48V
It provides longer distance power run, and it is suitable for vehicle or moving platform use, such as broadcast vehicle, mobile equipment cart, etc.

Always Up To Date
Firmware upgrade via USB/IP to keep the performance of the controller up to date.

Manufacturer: BOLIN Technology
