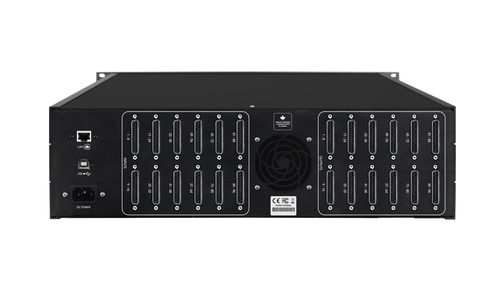

192 Point Connections (96 Inputs / 96 Outputs)
DB-25/D-SUB Tascam Standard Pinout Format Connectors
32 Assignable Independent Channels of 48V Phantom Power

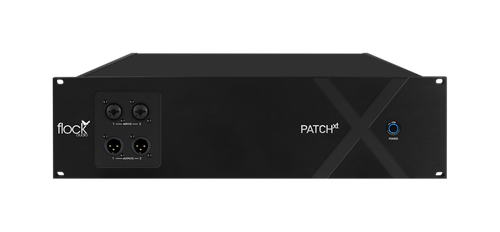

Front Panel - 2 Combo TRS/XLR Input & 2 XLR Output

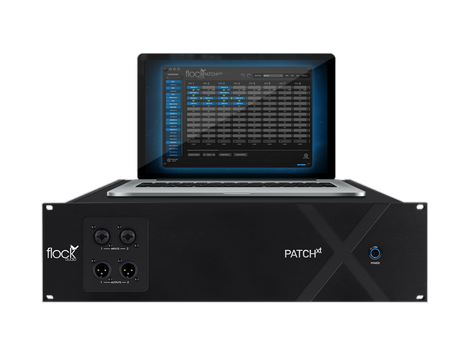

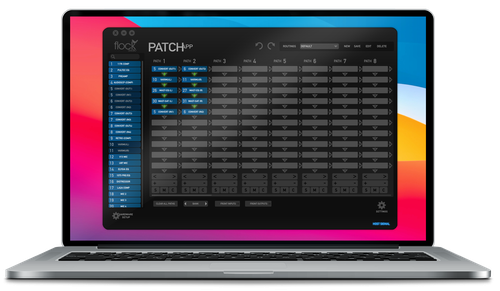

PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon) Create, Store & Recall Routings in Seconds
Create Complex Multing Combinations w/ No Impedance Issues
No AD/DA Conversion, 100% Transparent Analog Signal Path
Remote Sleep/Wake Mode Control of PXT Hardware
Patented Flock Audio Matrix Technology
Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT) Internal Power Supply w/ IEC Cable Included
6 Ft. - USB 2.0 (USB-A to USB-B) Threaded Securement - Cable Included CAT5 Network (Optional Control) Capability (Cable Not Included)
Unit Dimensions: 3U - 5.25”(H) x 19” (L) x 13” (D) - 35 lbs
Optional Rear mount Cable Hanger Accessory (Product Code: XTH)
