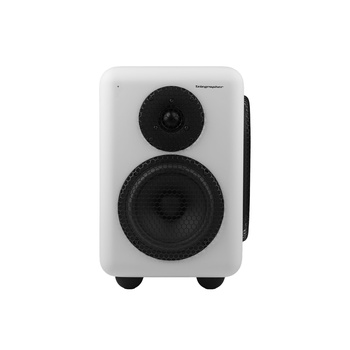

Active Analog Nearfield Monitor
RACCOON is an active, analog, two-way nearfield monitor with a passive radiator design, engineered to deliver a full, controlled low end from a compact enclosure. The passive radiator extends bass response without port noise, maintaining speed, accuracy, and translation at close listening distances.
Voiced with the same design philosophy as our larger systems, RACCOON offers precise imaging, neutral midrange, and a tight, confident low end that exceeds expectations for its size. It is built for critical mixing, editing, and long sessions where balance and fatigue-free listening matter.

Frequency Response: 45 - 20 Khz
Enclosure type: PR-tuned Vented
Crossover type: Active, Analog
Peak SPL: 102 dB (@ 1 meter)

Amplifiers: 2 per speaker
Amplifier Type: Class D
Amplifier Power: 2 x 50 W
Amplifier THD + N: %0.002

Input: Balanced (Analog) XLR

Number of drivers: 2 way
Woofer: 15.2 cm / 6”
Tweeter: 2.5 cm / 1”
Side-firing Passive Radiator

Safety: Shutdowns and LED Alerts*

Weight: 9.5 Kg
Dimensions: 34.7 x 23.7 x 25.4 cm (HxWxD)
Power Rating Max: 150 Watts
Power Rating RMS: 100 Watts
Min Voltage: 110-120 Volts AC +-%10
Max Voltage: 200-240 Volts AC +-%10
Voltage Frequency: 47-63 Hz
AC Connector: 3-pin IEC 250 Volts AC, 10A Male
Stand By: User controllable (On 120 min / Off)

* Amplifiers automatically shut down in response to electrical failures, high-frequency signals, or overheating, signaled by a red LED. A white LED indicates normal operation, and red flashing warns of audio clipping. Continuous clipping triggers a protective shutdown.

Both RACCOON and PANDA include a 40 Hz high-pass filter. When activated, it gently reduces the very low frequencies rather than abruptly cutting everything below 40 Hz. The filter slope is carefully aligned, so the effect is focused on sub-bass content only, helping clean up extreme low-end energy without altering the speaker’s natural low-frequency balance.

The passive radiator enclosure allows RACCOON to extend low-frequency response while maintaining control and accuracy. By eliminating port turbulence and resonance, the PR design delivers fast, well-defined bass with reduced phase anomalies in the critical low-mid region. The result is a coherent, balanced presentation that preserves transient detail and spatial accuracy, making it reliable for critical listening and precise mix decisions.

RACCOON follows a fully analog signal path, preserving the natural character of the source without coloration or processing artifacts. This approach delivers a sound that is rich, musical, and direct, allowing subtle details, dynamics, and tonal balance to translate clearly and honestly.

TRANSPARENT GRILLE
Acoustically, the grille is designed to stay out of the way. The perforation pattern has a high open area, allowing sound to pass through freely without being filtered, so the speaker’s natural balance, clarity, and transient response remain intact.

The grille does its job of protection without imposing a sonic character of its own, keeping the sound open, direct, and unchanged.
